Direct Remote-reading Water Meter

LXSZ Series Direct Remote-reading Water Meter

LXSZ Series Direct Remote-reading Water Meter

LXSZ Series Direct Remote-reading Water Meter

  • Intro

  • Features

  • Main parameters

  • Principle Applica

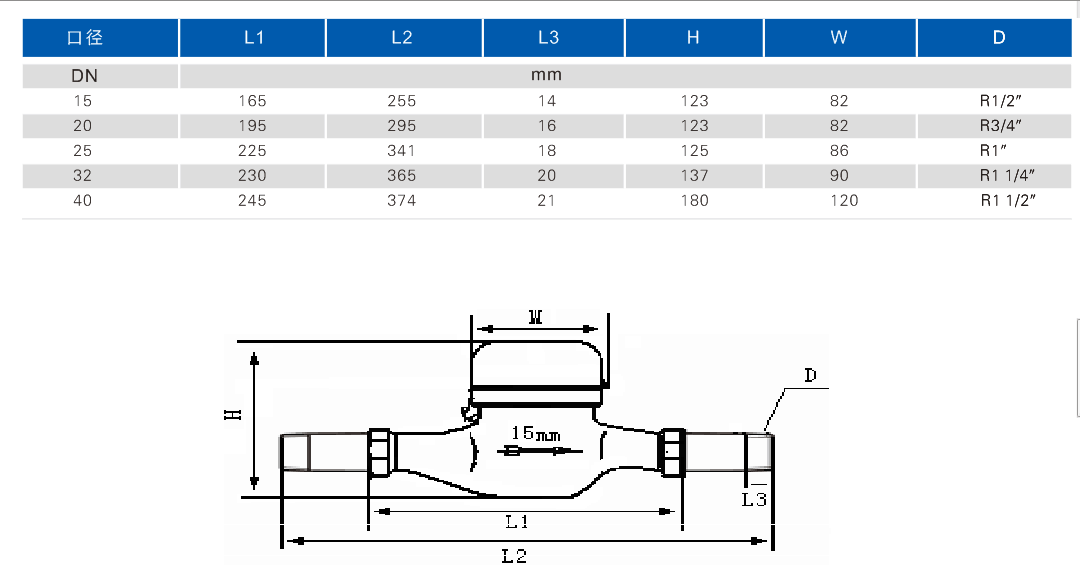

  • Outline size

LXSZ/LXLZ remote direct reading water meter, convenient for remote metering and control , adopt MBUS/RS485 communication to achieve remote reading and  make site metering unnecessary. Moreover, it will be easy for the management to monitor the use of water, make remote metering more  convenient , reliable and save manpower, material and cost, thus improving productivity.

The water meters conform to the relative technic requirement of GB/T778-2007 and CJ/T224-2012 and communication obey the requirment of  CJ/T188-2004.

We can also customize the  communication protocal per client's demand.

SPECIFICATIONS
1.Communication interface & protocols: Photoelectric reading head (default)
M - M-BUS interfaces: CJ/T188-2004
R - RS485 interfaces: CJ/T188-2004
2.Power supply: Battery or DC12V (RS485)
3.Temperature rating: T30
4.Protection: IP65; pressure grade: MAP10
5.Flow range(Q3/Q1): R80; accuracy: Class 2
6.Installation: Horizontal
7.Environment Class: B (installed in the room)
8.Flow field sensitivity level: U10,D5
9.Electromagnetic environment: E1 (residential, commercial, and light industrial )
10.Pipe:Ductile iron or Brass (DN15~32)
